4. [미니 프로젝트] 서보 모터 2개를 활용한 금고 만들기

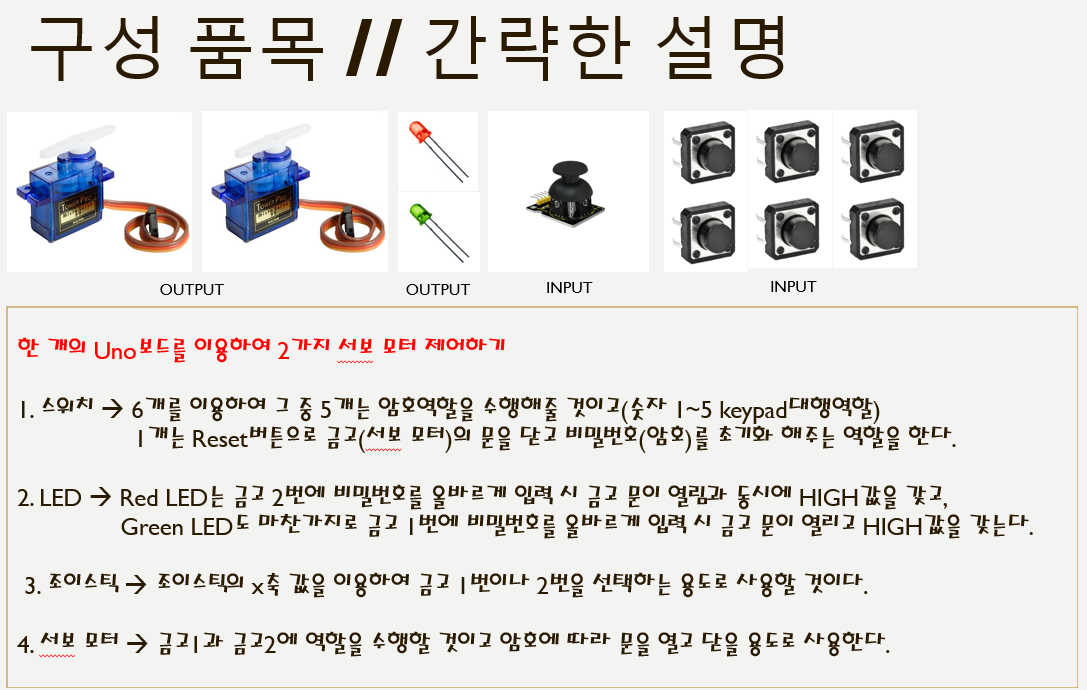

아두이노 코드

#include <Servo.h>
#include <Servo.h>

Servo servo1;
Servo servo2;
const int button1 = 2;
const int button2 = 3;
const int button3 = 4;
const int button4 = 5;
const int button5 = 6;
const int button6 = 7;
void checkEntered1(int button);
int code1[] = {3,5,3,5,2};
int code2[] = {2,3,4,4,1};
int entered[6];
int kpin = 13, xpin = A0, ypin = A1;
int second = 0;
int first = 0;
int Red = 8;
int Green = 9;

void setup() {
  Serial.begin(9600);
  servo1.attach(10);
  servo1.write(180);
  servo2.attach(11);
  servo2.write(180);
  pinMode(button1, INPUT_PULLUP);
  pinMode(button2, INPUT_PULLUP);
  pinMode(button3, INPUT_PULLUP);
  pinMode(button4, INPUT_PULLUP);
  pinMode(button5, INPUT_PULLUP);
  pinMode(button6, INPUT_PULLUP);
  pinMode(Red, OUTPUT);
  pinMode(Green, OUTPUT);
  Serial.println("Choose Your Box");
}

void loop() {
  int swValue = digitalRead(kpin);
  int xValue = analogRead(xpin);
  int yValue = analogRead(ypin);
  if(xValue >=1022){
    second++;
    Serial.println("Choose Second Box");
  }
  else if(xValue <= 5){
    first++;
    Serial.println("Choose First Box");
  }

  if (digitalRead(button1) == LOW){
    checkEntered1(1);
    delay(250);
  }

  else if (digitalRead(button2) == LOW){
    checkEntered1(2);
    delay(250);
  }
  else if (digitalRead(button3) == LOW){
    checkEntered1(3);
    delay(250);
  }

  else if (digitalRead(button4) == LOW){
    checkEntered1(4);
    delay(250); //wait
  }

  else if (digitalRead(button5) == LOW){
    checkEntered1(5);
    delay(250);
  }

  else if(digitalRead(button6) == LOW){
    close_all();
  }

}

void checkEntered1(int button){
  if (entered[0] != 0){
    checkEntered2(button);
  }

  else if(entered[0] == 0){
    entered[0] = button;
    Serial.print("1: ");Serial.println(entered[0]);
  }
}

void checkEntered2(int button){
  if (entered[1] != 0){
    checkEntered3(button);
  }

  else if(entered[1] == 0){
    entered[1] = button;
    Serial.print("2: ");Serial.println(entered[1]);
  }
}


void checkEntered3(int button){
  if (entered[2] != 0){
    checkEntered4(button);
  }

  else if (entered[2] == 0){
    entered[2] = button;
    Serial.print("3: ");Serial.println(entered[2]);
  }
}

void checkEntered4(int button){
  if (entered[3] != 0){
    checkEntered5(button);
  }

  else if (entered[3] == 0){
    entered[3] = button;
    Serial.print("4: ");Serial.println(entered[3]);
  }
}

void checkEntered5(int button){
  if (entered[4] == 0){
    entered[4] = button;
    Serial.print("5: ");Serial.println(entered[4]);
    delay(100);
    compareCode();
  }
}


void compareCode(){
  for (int i = 0; i<5;i++){
    Serial.println(entered[i]);
  }
  if ((second < first) &&(entered[0]==code1[0]) && (entered[1]==code1[1]) && (entered[2]==code1[2]) && (entered[3]==code1[3]) && (entered[4]==code1[4])&& (entered[5]==code1[5])){
    Serial.println("First Box Open");
    digitalWrite(Green, HIGH);
    servo1.write(120);
    for (int i = 0; i < 6; i++){
      entered[i] = 0;
    }
  }

  else if((second > first) &&(entered[0]==code2[0]) && (entered[1]==code2[1]) && (entered[2]==code2[2]) && (entered[3]==code2[3]) && (entered[4]==code2[4])&& (entered[5]==code2[5])){
    Serial.println("Second Box Open");
    digitalWrite(Red, HIGH);
    servo2.write(120);
    for (int i = 0; i < 6; i++){
      entered[i] = 0;
    }
  }
  else {
    Serial.println("Close");
    for (int i = 0; i < 7; i++){
      entered[i] = 0;
    }
  }
}

void close_all(){
  Serial.println("All Reset / Close");
  servo1.write(180);
  servo2.write(180);
  first = 0;
  second = 0;
  digitalWrite(Red, LOW);
  digitalWrite(Green, LOW);
}

파이썬 코드

from Arduino import Arduino
import time

servoPin1 = 10
servoPin2 = 11

kpin = 13
xpin = 0
ypin = 1


second = 0
first = 0

Red = 8
Green = 9

button1 = 2
button2 = 3
button3 = 4
button4 = 5
button5 = 6
button6 = 7

code1 = [1,1,1,1,1]
code2 = [3,3,3,3,3]
entered = [0,0,0,0,0]

board = Arduino('9600')
board.pinMode(kpin,"INPUT")
board.Servos.attach(servoPin1)
board.Servos.write(servoPin1, 180)
board.Servos.attach(servoPin2)
board.Servos.write(servoPin2, 180)
board.pinMode(button1, "INPUT")
board.pinMode(button2, "INPUT")
board.pinMode(button3, "INPUT")
board.pinMode(button4, "INPUT")
board.pinMode(button5, "INPUT")
board.pinMode(button6, "INPUT")
board.pinMode(Red, "OUTPUT")
board.pinMode(Green, "OUTPUT")
print("Choose Your Box")

def checkEntered1(button):
    if entered[0] != 0:
        checkEntered2(button)

    elif entered[0] == 0:
        entered[0] = button
        print("1: ",entered[0])

def checkEntered2(button):
    if entered[1] != 0:
        checkEntered3(button)

    elif entered[1] == 0:
        entered[1] = button
        print("2: ",entered[1])

def checkEntered3(button):
    if entered[2] != 0:
        checkEntered4(button)

    elif entered[2] == 0:
        entered[2] = button
        print("3: ",entered[2])

def checkEntered4(button):
    if entered[3] != 0:
        checkEntered5(button)

    elif entered[3] == 0:
        entered[3] = button
        print("4: ",entered[3])


def checkEntered5(button):
    if entered[4] == 0:
        entered[4] = button
        print("5: ",entered[4])
        time.sleep(0.5)
        compareCode()

def close_all():
    print("All Reset / Close")
    board.Servos.write(servoPin1,180)
    board.Servos.write(servoPin2,180)
    first = 0
    second = 0
    board.digitalWrite(Red, "LOW")
    board.digitalWrite(Green, "LOW")

def compareCode():
    if entered[0]==code1[0] & entered[1]==code1[1] & entered[2]==code1[2] & entered[3]==code1[3] & entered[4]==code1[4]:
        print("First Box Open")
        board.digitalWrite(Green, "HIGH")
        board.Servos.write(servoPin1,120)
        for i in range(0,5):
            entered[i] = 0

    elif entered[0]==code2[0] & entered[1]==code2[1] & entered[2]==code2[2] & entered[3]==code2[3] & entered[4]==code2[4]:
        print("Second Box Open")
        board.digitalWrite(Red, "HIGH")
        board.Servos.write(servoPin2,120)
        for i in range(0,5):
            entered[i] = 0
    else:
        print("wrong")



while True:
    if board.analogRead(xpin) >=1000:
        second = second +1
        print("Choose Second Box")
        time.sleep(0.5)

    elif board.analogRead(ypin) >= 1000:
        first = first +1
        print("Choose First Box")
        time.sleep(0.5)

    if board.digitalRead(button1) == 0:
        checkEntered1(1)
        time.sleep(0.5)

    elif board.digitalRead(button2) == 0:
        checkEntered1(2)
        time.sleep(0.5)

    elif board.digitalRead(button3) == 0:
        checkEntered1(3)
        time.sleep(0.5)

    elif board.digitalRead(button4) == 0:
        checkEntered1(4)
        time.sleep(0.5)

    elif board.digitalRead(button5) == 0:
        checkEntered1(5)
        time.sleep(0.5)

    elif board.digitalRead(button6) == 0:
        close_all()

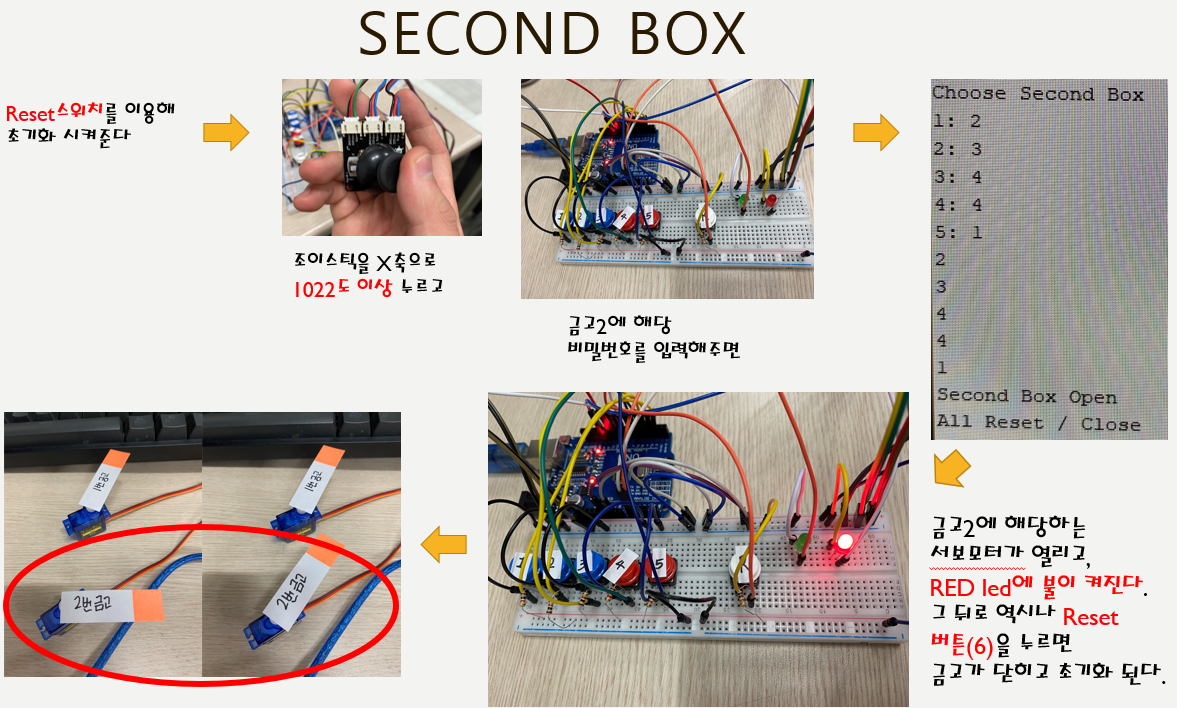

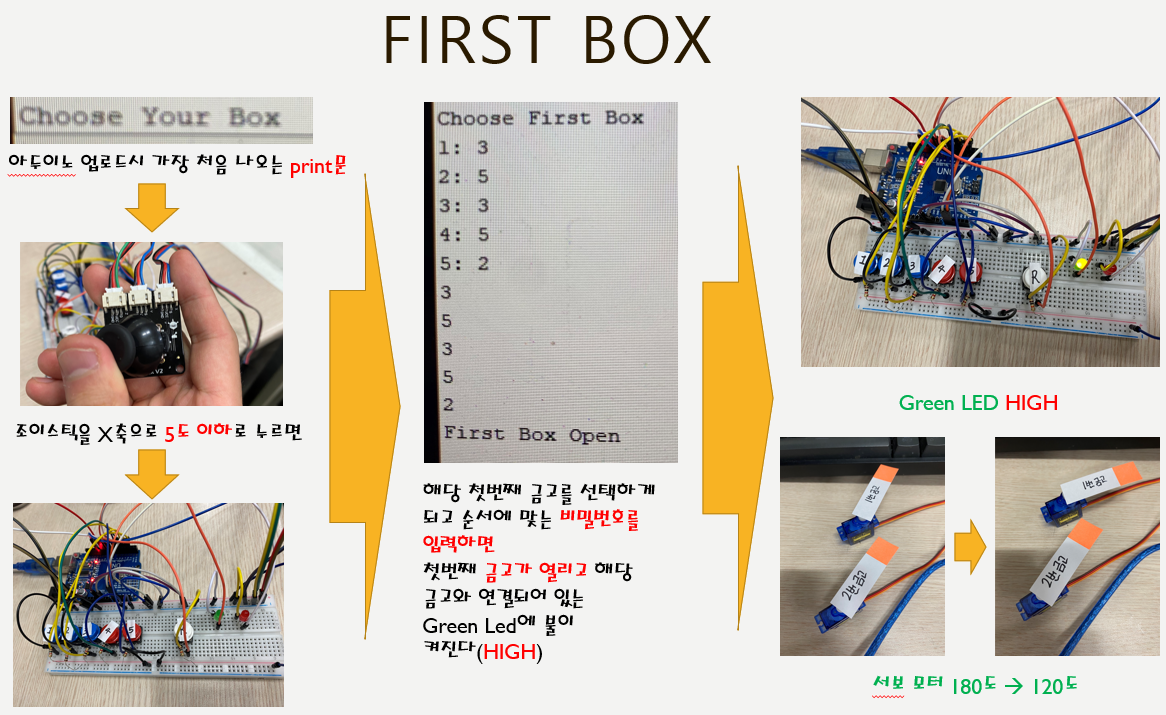

설명





---

학교 다닐 때 미니 프로젝트로 만든 건데.. 귀엽길래 ㅎ

가볍게만 봐주셨으면 합니다 :)
